Name:Plastic Injection Molding Machine       Model:JZW2280
  • Product Parameters
  • About Products
  • Product Feature
  • Configuration Table
SPECIFICATION JZW2280
 A B C
SPECIFICATION
Screw Diameter mm 50 55 60
Screw L/D Ratio L/D 22 20 18.3
Shot Size(Theoretical) cm3 442 535 636
 Injection Weight(PS) g 402 487 579
Injection Rate g/s 189 229 273
Plasticizing Capacity g/d 32 41 49
Injection Pressure Mpa 212 175 147
Screw Speed rpm 0~180
CLAMPING UNIT
Clamp Tonnage KN 2280
Toggle Stroke mm 480
Space Between Tie Bars mm 510×510
Max. Mold Height mm 550
Min. Mold Height mm 200
Ejector Stroke mm 140
Ejector  Tonnage KN 65
Ejector  Number  Piece 9
其他
Max. Pump Pressure Mpa 16
Pump Motor Power KW 22
Heater Power KW 12.5
Machine Dimensions(L×W×H) m 5.7×1.5×2.2
Machine Weight t 6.9
Hopper Capacity L 50
Hopper Capacity L 320
Platen Dimensions Face

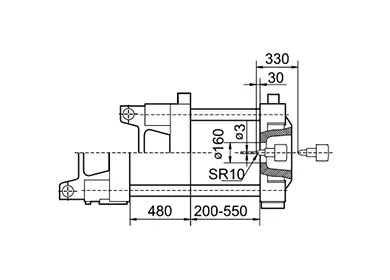

Platen Dimensions Side

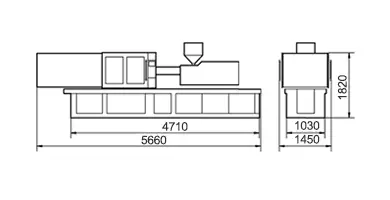

Machine Dimensions
